Ensemble Workflow Example¶
Tip

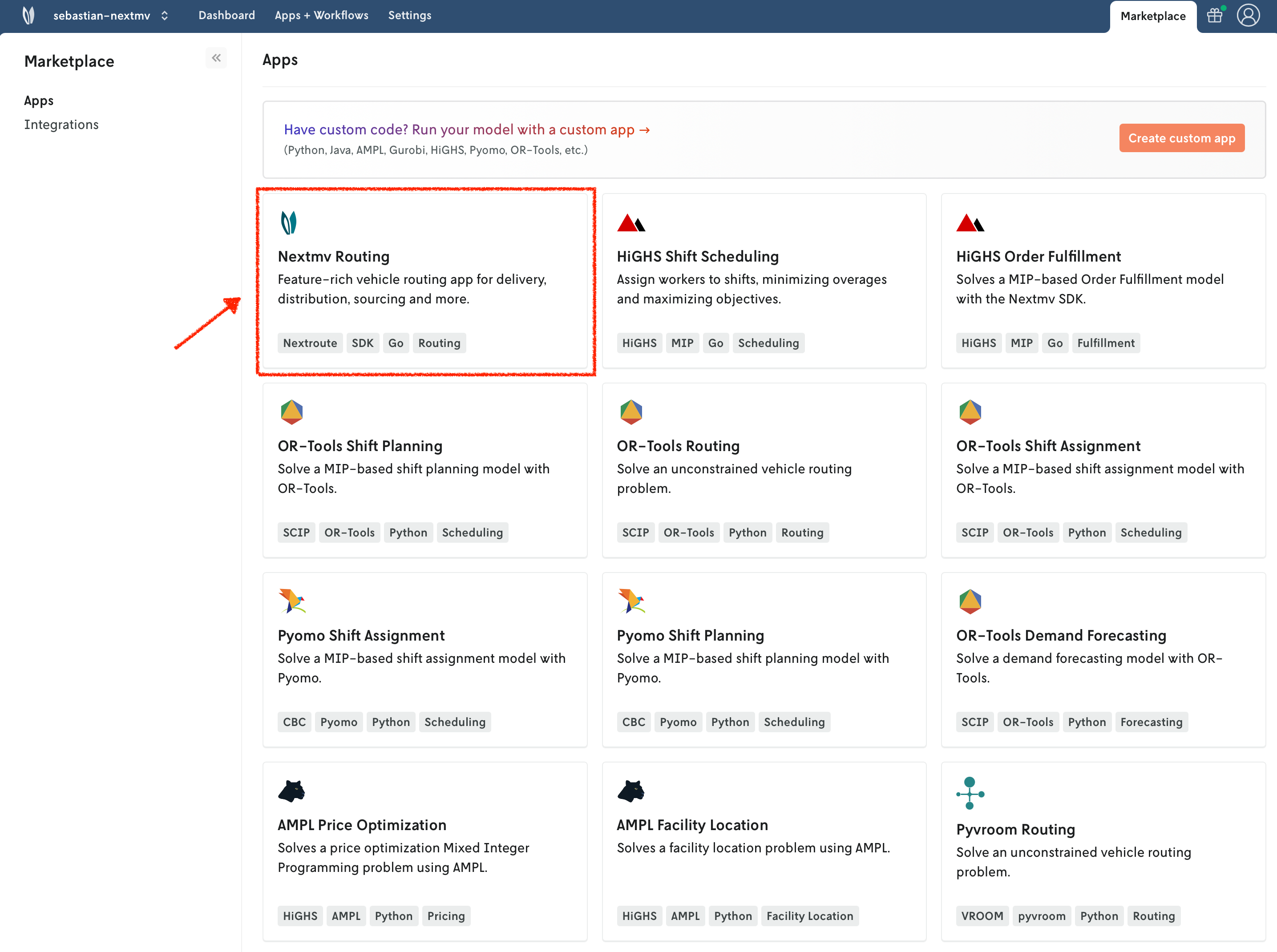

This example requires you to subscribe to the following Nextmv Marketplace apps, and name them as follows:
- Nextmv Routing:
routing-nextroute
This a basic ensemble workflow example. An ensemble workflow is a workflow that runs multiple solver instances in parallel and then picks the best result.
This is useful when you want to run multiple solver instances with different options or configurations, and then select the best result from the ensemble.
from typing import Any
import nextmv
from nextpipe import FlowSpec, app, log, needs, repeat, step
# Define the options for the workflow
options = nextmv.Options(
nextmv.Option("instance", str, "latest", "App instance to use. Default is devint.", False),
)
class Workflow(FlowSpec):
@app(
app_id="routing-nextroute",
instance_id=options.instance,
parameters={"model.constraints.enable.cluster": True},
)
@repeat(repetitions=3)
@step
def run_nextroute() -> dict[str, Any]:
"""Runs the model."""
pass
@needs(predecessors=[run_nextroute])
@step
def pick_best(results: list[dict[str, Any]]) -> dict[str, Any]:
"""Aggregates the results."""
log(f"Values: {[result['statistics']['result']['value'] for result in results]}")
best_solution_idx = min(
range(len(results)),
key=lambda i: results[i]["statistics"]["result"]["value"],
)
return results[best_solution_idx]
def main():
"""Runs the workflow."""
# Load input data
input = nextmv.load()
# Run workflow
workflow = Workflow("DecisionWorkflow", input.data)
workflow.run()
# Write the result
result = workflow.get_result(workflow.pick_best)
nextmv.write(result)
if __name__ == "__main__":
main()
Save the following data as input.json, in the same location as the Python
script.
{
"defaults": {
"stops": {
"duration": 120,
"unplanned_penalty": 200000
},
"vehicles": {
"end_location": {
"lat": 33.122746,
"lon": -96.659222
},
"end_time": "2021-10-17T11:00:00-06:00",
"speed": 10,
"start_location": {
"lat": 33.122746,
"lon": -96.659222
},
"start_time": "2021-10-17T09:00:00-06:00"
}
},
"stops": [
{
"id": "location-1",
"location": {
"lat": 33.20580830033956,
"lon": -96.75038245222623
},
"quantity": -27
},
{
"id": "location-2",
"location": {
"lat": 33.2259142720506,
"lon": -96.54613745932127
},
"quantity": -30
},
{
"id": "location-3",
"location": {
"lat": 33.23528740544529,
"lon": -96.61059803136642
},
"quantity": -36
},
{
"id": "location-4",
"location": {
"lat": 33.20379744909628,
"lon": -96.61356543957307
},
"quantity": -19
},
{
"id": "location-5",
"location": {
"lat": 33.178801586789376,
"lon": -96.64137458150537
},
"quantity": -31
},
{
"id": "location-6",
"location": {
"lat": 33.02896457334468,
"lon": -96.83157538607735
},
"quantity": -15
},
{
"id": "location-7",
"location": {
"lat": 33.08670100884261,
"lon": -96.62951544963792
},
"quantity": -31
},
{
"id": "location-8",
"location": {
"lat": 33.08133590083287,
"lon": -96.86007117348946
},
"quantity": -52
},
{
"id": "location-9",
"location": {
"lat": 33.092841906114394,
"lon": -96.87346076034575
},
"quantity": -48
},
{
"id": "location-10",
"location": {
"lat": 33.10492159118987,
"lon": -96.79586982112724
},
"quantity": -40
}
],
"vehicles": [
{
"capacity": 305,
"id": "vehicle-1"
},
{
"capacity": 205,
"id": "vehicle-2"
}
]
}
Run the example:
$ cat input.json | python main.py
[nextpipe] No application ID or run ID found, uplink is inactive.
[nextpipe] Flow: Workflow
[nextpipe] nextpipe: v0.2.2.dev0
[nextpipe] nextmv: 0.28.0
[nextpipe] Flow graph steps:
[nextpipe] Step:
[nextpipe] Definition: Step(run_nextroute, StepRepeat(3), StepRun(routing-nextroute, latest, {'model.constraints.enable.cluster': 'True'}, InputType.JSON, False))
[nextpipe] Docstring: Runs the model.
[nextpipe] Step:
[nextpipe] Definition: Step(pick_best, StepNeeds(run_nextroute))
[nextpipe] Docstring: Aggregates the results.
[nextpipe] Mermaid diagram:
[nextpipe] graph LR
run_nextroute{ }
run_nextroute_join{ }
run_nextroute_0(run_nextroute_0)
run_nextroute --> run_nextroute_0
run_nextroute_0 --> run_nextroute_join
run_nextroute_1(run_nextroute_1)
run_nextroute --> run_nextroute_1
run_nextroute_1 --> run_nextroute_join
run_nextroute_2(run_nextroute_2)
run_nextroute --> run_nextroute_2
run_nextroute_2 --> run_nextroute_join
run_nextroute_join --> pick_best
pick_best(pick_best)
[nextpipe] Mermaid URL: https://mermaid.ink/svg/Z3JhcGggTFIKICBydW5fbmV4dHJvdXRleyB9CiAgcnVuX25leHRyb3V0ZV9qb2lueyB9CiAgcnVuX25leHRyb3V0ZV8wKHJ1bl9uZXh0cm91dGVfMCkKICBydW5fbmV4dHJvdXRlIC0tPiBydW5fbmV4dHJvdXRlXzAKICBydW5fbmV4dHJvdXRlXzAgLS0+IHJ1bl9uZXh0cm91dGVfam9pbgogIHJ1bl9uZXh0cm91dGVfMShydW5fbmV4dHJvdXRlXzEpCiAgcnVuX25leHRyb3V0ZSAtLT4gcnVuX25leHRyb3V0ZV8xCiAgcnVuX25leHRyb3V0ZV8xIC0tPiBydW5fbmV4dHJvdXRlX2pvaW4KICBydW5fbmV4dHJvdXRlXzIocnVuX25leHRyb3V0ZV8yKQogIHJ1bl9uZXh0cm91dGUgLS0+IHJ1bl9uZXh0cm91dGVfMgogIHJ1bl9uZXh0cm91dGVfMiAtLT4gcnVuX25leHRyb3V0ZV9qb2luCiAgcnVuX25leHRyb3V0ZV9qb2luIC0tPiBwaWNrX2Jlc3QKICBwaWNrX2Jlc3QocGlja19iZXN0KQo=?theme=dark
[nextpipe] Running node run_nextroute_0
[nextpipe] Running node run_nextroute_1
[nextpipe] Running node run_nextroute_2
[nextpipe] Running node pick_best_0
[pick_best_0] Values: [11325.273721933365, 11325.273721933365, 11325.273721933365]
{
"version": {
"nextroute": "v1.11.4",
"sdk": "v1.8.3-0.20241219091227-002f36a342d6"
},
"options": {
"model": {
"constraints": {
"disable": {
"attributes": false,
"capacity": false,
"capacities": null,
"distance_limit": false,
"groups": false,
"maximum_duration": false,
"maximum_stops": false,
"maximum_wait_stop": false,
"maximum_wait_vehicle": false,
"mixing_items": false,
"precedence": false,
"vehicle_start_time": false,
"vehicle_end_time": false,
"start_time_windows": false
},
"enable": {
"cluster": true
}
},
"objectives": {
"capacities": "",
"min_stops": 1,
"early_arrival_penalty": 1,
"late_arrival_penalty": 1,
"vehicle_activation_penalty": 1,
"travel_duration": 0,
"vehicles_duration": 1,
"unplanned_penalty": 1,
"cluster": 0,
"stop_balance": 0
},
"properties": {
"disable": {
"durations": false,
"stop_duration_multipliers": false,
"duration_groups": false,
"initial_solution": false
},
"maximum_time_horizon": 15552000
},
"validate": {
"disable": {
"start_time": false,
"resources": false
},
"enable": {
"matrix": false,
"matrix_asymmetry_tolerance": 20
}
}
},
"solve": {
"iterations": -1,
"duration": 5000000000,
"plateau": {
"delay": 0,
"duration": 0,
"iterations": 0,
"relative_threshold": 0,
"absolute_threshold": -1
},
"parallel_runs": -1,
"start_solutions": -1,
"run_deterministically": false
},
"format": {
"disable": {
"progression": false
}
},
"check": {
"duration": 30000000000,
"verbosity": "off"
}
},
"solutions": [
{
"unplanned": [],
"vehicles": [
{
"id": "vehicle-1",
"route": [
{
"stop": {
"id": "vehicle-1-start",
"location": {
"lon": -96.659222,
"lat": 33.122746
}
},
"travel_duration": 0,
"cumulative_travel_duration": 0,
"arrival_time": "2021-10-17T09:00:00-06:00",
"start_time": "2021-10-17T09:00:00-06:00",
"end_time": "2021-10-17T09:00:00-06:00"
},
{
"stop": {
"id": "location-6",
"location": {
"lon": -96.83157538607735,
"lat": 33.02896457334468
}
},
"travel_duration": 1914,
"cumulative_travel_duration": 1914,
"travel_distance": 19147,
"cumulative_travel_distance": 19147,
"arrival_time": "2021-10-17T09:31:54-06:00",
"start_time": "2021-10-17T09:31:54-06:00",
"duration": 120,
"end_time": "2021-10-17T09:33:54-06:00"
},
{
"stop": {
"id": "location-8",
"location": {
"lon": -96.86007117348946,
"lat": 33.08133590083287
}
},
"travel_duration": 640,
"cumulative_travel_duration": 2554,
"travel_distance": 6400,
"cumulative_travel_distance": 25547,
"arrival_time": "2021-10-17T09:44:34-06:00",
"start_time": "2021-10-17T09:44:34-06:00",
"duration": 120,
"end_time": "2021-10-17T09:46:34-06:00"
},
{
"stop": {
"id": "location-9",
"location": {
"lon": -96.87346076034575,
"lat": 33.092841906114394
}
},
"travel_duration": 178,
"cumulative_travel_duration": 2733,
"travel_distance": 1786,
"cumulative_travel_distance": 27333,
"arrival_time": "2021-10-17T09:49:33-06:00",
"start_time": "2021-10-17T09:49:33-06:00",
"duration": 120,
"end_time": "2021-10-17T09:51:33-06:00"
},
{
"stop": {
"id": "location-10",
"location": {
"lon": -96.79586982112724,
"lat": 33.10492159118987
}
},
"travel_duration": 735,
"cumulative_travel_duration": 3468,
"travel_distance": 7351,
"cumulative_travel_distance": 34684,
"arrival_time": "2021-10-17T10:03:48-06:00",
"start_time": "2021-10-17T10:03:48-06:00",
"duration": 120,
"end_time": "2021-10-17T10:05:48-06:00"
},
{
"stop": {
"id": "location-1",
"location": {
"lon": -96.75038245222623,
"lat": 33.20580830033956
}
},
"travel_duration": 1199,
"cumulative_travel_duration": 4667,
"travel_distance": 11990,
"cumulative_travel_distance": 46674,
"arrival_time": "2021-10-17T10:25:47-06:00",
"start_time": "2021-10-17T10:25:47-06:00",
"duration": 120,
"end_time": "2021-10-17T10:27:47-06:00"
},
{
"stop": {
"id": "vehicle-1-end",
"location": {
"lon": -96.659222,
"lat": 33.122746
}
},
"travel_duration": 1254,
"cumulative_travel_duration": 5921,
"travel_distance": 12542,
"cumulative_travel_distance": 59216,
"arrival_time": "2021-10-17T10:48:41-06:00",
"start_time": "2021-10-17T10:48:41-06:00",
"end_time": "2021-10-17T10:48:41-06:00"
}
],
"route_travel_duration": 5921,
"route_travel_distance": 59216,
"route_stops_duration": 600,
"route_duration": 6521
},
{
"id": "vehicle-2",
"route": [
{
"stop": {
"id": "vehicle-2-start",
"location": {
"lon": -96.659222,
"lat": 33.122746
}
},
"travel_duration": 0,
"cumulative_travel_duration": 0,
"arrival_time": "2021-10-17T09:00:00-06:00",
"start_time": "2021-10-17T09:00:00-06:00",
"end_time": "2021-10-17T09:00:00-06:00"
},
{
"stop": {
"id": "location-7",
"location": {
"lon": -96.62951544963792,
"lat": 33.08670100884261
}
},
"travel_duration": 487,
"cumulative_travel_duration": 487,
"travel_distance": 4870,
"cumulative_travel_distance": 4870,
"arrival_time": "2021-10-17T09:08:07-06:00",
"start_time": "2021-10-17T09:08:07-06:00",
"duration": 120,
"end_time": "2021-10-17T09:10:07-06:00"
},
{
"stop": {
"id": "location-2",
"location": {
"lon": -96.54613745932127,
"lat": 33.2259142720506
}
},
"travel_duration": 1731,
"cumulative_travel_duration": 2218,
"travel_distance": 17316,
"cumulative_travel_distance": 22186,
"arrival_time": "2021-10-17T09:38:58-06:00",
"start_time": "2021-10-17T09:38:58-06:00",
"duration": 120,
"end_time": "2021-10-17T09:40:58-06:00"
},
{
"stop": {
"id": "location-3",
"location": {
"lon": -96.61059803136642,
"lat": 33.23528740544529
}
},
"travel_duration": 608,
"cumulative_travel_duration": 2827,
"travel_distance": 6085,
"cumulative_travel_distance": 28271,
"arrival_time": "2021-10-17T09:51:07-06:00",
"start_time": "2021-10-17T09:51:07-06:00",
"duration": 120,
"end_time": "2021-10-17T09:53:07-06:00"
},
{
"stop": {
"id": "location-4",
"location": {
"lon": -96.61356543957307,
"lat": 33.20379744909628
}
},
"travel_duration": 351,
"cumulative_travel_duration": 3178,
"travel_distance": 3512,
"cumulative_travel_distance": 31783,
"arrival_time": "2021-10-17T09:58:58-06:00",
"start_time": "2021-10-17T09:58:58-06:00",
"duration": 120,
"end_time": "2021-10-17T10:00:58-06:00"
},
{
"stop": {
"id": "location-5",
"location": {
"lon": -96.64137458150537,
"lat": 33.178801586789376
}
},
"travel_duration": 379,
"cumulative_travel_duration": 3558,
"travel_distance": 3797,
"cumulative_travel_distance": 35580,
"arrival_time": "2021-10-17T10:07:18-06:00",
"start_time": "2021-10-17T10:07:18-06:00",
"duration": 120,
"end_time": "2021-10-17T10:09:18-06:00"
},
{
"stop": {
"id": "vehicle-2-end",
"location": {
"lon": -96.659222,
"lat": 33.122746
}
},
"travel_duration": 645,
"cumulative_travel_duration": 4203,
"travel_distance": 6450,
"cumulative_travel_distance": 42030,
"arrival_time": "2021-10-17T10:20:03-06:00",
"start_time": "2021-10-17T10:20:03-06:00",
"end_time": "2021-10-17T10:20:03-06:00"
}
],
"route_travel_duration": 4203,
"route_travel_distance": 42030,
"route_stops_duration": 600,
"route_duration": 4803
}
],
"objective": {
"name": "1 * vehicles_duration + 1 * unplanned_penalty",
"objectives": [
{
"name": "vehicles_duration",
"factor": 1,
"base": 11325.273721933365,
"value": 11325.273721933365
},
{
"name": "unplanned_penalty",
"factor": 1,
"value": 0
}
],
"value": 11325.273721933365
}
}
],
"statistics": {
"schema": "v1",
"run": {
"duration": 5.005287591,
"iterations": 1888526
},
"result": {
"duration": 0.004247828,
"value": 11325.273721933365,
"custom": {
"activated_vehicles": 2,
"unplanned_stops": 0,
"max_travel_duration": 5921,
"max_duration": 6521,
"min_travel_duration": 4203,
"min_duration": 4803,
"max_stops_in_vehicle": 5,
"min_stops_in_vehicle": 5
}
},
"series_data": {
"value": {
"name": "1 * vehicles_duration + 1 * unplanned_penalty",
"data_points": [
{
"x": 0.002622294,
"y": 11372.303298711777
},
{
"x": 0.004247828,
"y": 11325.273721933365
}
]
},
"custom": [
{
"name": "iterations",
"data_points": [
{
"x": 0.002622294,
"y": 0
},
{
"x": 0.004247828,
"y": 280
}
]
}
]
}
}
}
The following Mermaid diagram visualizes the flow structure of the ensemble workflow:
graph LR
run_nextroute{ }
run_nextroute_join{ }
run_nextroute_0(run_nextroute_0)
run_nextroute --> run_nextroute_0
run_nextroute_0 --> run_nextroute_join
run_nextroute_1(run_nextroute_1)
run_nextroute --> run_nextroute_1
run_nextroute_1 --> run_nextroute_join
run_nextroute_2(run_nextroute_2)
run_nextroute --> run_nextroute_2
run_nextroute_2 --> run_nextroute_join
run_nextroute_join --> pick_best
pick_best(pick_best)
